Filters

In Extended, Advanced and Expert search, Filters are shown. These represent Document Metadata, e.g. year of writing, title, author, etc. (depending on how you indexed your data). In BlackLab terms, these are metadata fields, see the docs.

Organize filters in tabs

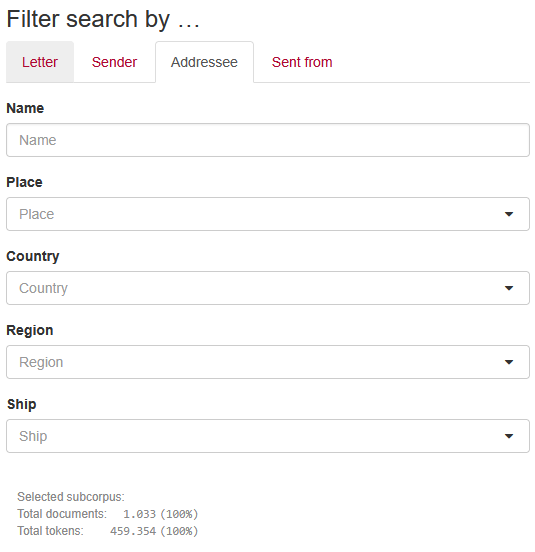

In the example image above, filters are grouped into different categories by using tabs. This is best done through BlackLab, by using the metadataFieldGroups setting in the .blf.yaml configuration.
See the BlackLab docs for more info on that.

INFO

The current situation is very user-friendly, we'll work on improving this workflow in the future.

Example

Here is a simple snippet illustrating the config for the example image. The ids here are just an example, they should match the Metadata Fields in your corpus.

# .blf.yaml
corpusConfig:
  metadataFieldGroups:
  - name: Letter
    # fields: ...
  - name: Sender
    # fields: ...
  - name: Addressee
    - adr_naam_norm
    - adr_loc_plaats_norm
    - adr_loc_land_norm
    - adr_loc_regio_norm
    - adr_loc_schip_norm
  - name: Sent from
    # fields: ...

⚠️ Leftover fields are hidden!

If you've defined groups, any leftover metadata is put in a "remainder" group, which is hidden!
This means the field won't show up in the interface any longer! This includes at least the following locations in the search form and results:

• Explore/Corpora
• Filter
• Per Hit/Group by
• Per Hit/Sort by
• Per Document/Group by
• Per Document/Sort by

Order of Filters

The order of filters on the page is taken from the metadataFieldGroups, falling back to order of declaration for fields not inside a group.

Show or Hide Filters

TIP

Prefer the table-based configuration for managing search form fields.
It centralizes settings and uses the same underlying functions as manual methods.

⚠️ The table-based method may not cover all cases. For advanced customizations, override with dedicated functions as needed.

method 1

// Show only these metadata fields in the filters section
vuexModules.ui.actions.search.shared.searchMetadataIds(['title', 'date']);

method 2

frontend.customize(corpus => {
  /** @param {string} filterId
   * @returns {boolean | null} true/false to show/hide, null to use default behavior.
   */
  corpus.search.metadata.showField(filterId => {
    if (filterId === 'title') return true; // show title filter
    return null;
  })
})

Span filters

Adding span filters (to filter by part of documents)

To add an extra tab where you can filter by part of the document, such as only searching in certain types of named entity, or speech by one person:

definition

function addCustomTab(
  /** (display-)name of the tab, can be overridden using locale files/internationalization. */
  name: string,
  fields: FilterDefinition[]
): void;

function createSpanFilter(
  /** Span Name, e.g. 'named-entity' */
  spanName: string,
  /** Attribute name, e.g. 'type' */
  attrName: string,
  /** Widget to use. 'auto' is the default and will choose between `text` and `select` based on the number of unique values. */
  widget: 'auto'|'text'|'select'|'range' = 'auto',
  /** Display name of the filter (optional). Can be overridden using locale files/internationalization. */
  displayName: string,
  /** Metadata object (optional). You can override the options for a select widget here (default are all the actual values in the corpus). */
  metadata: any = {}
): FilterDefinition;

usage

const m = corpus.search.metadata;
m.addCustomTab(
  'Span filters',
  [
    m.createSpanFilter('named-entity', 'type'),
    m.createSpanFilter('speech', 'person'),
  ]
);
