Appearance

Tooltips on words ​

Basic Tooltip ​

resulting tooltip

Basic tooltips on words need 3 things:

  • the word class
  • the data-toggle="tooltip" attribute
  • the title attribute
html
<span class="title" data-toggle="tooltip" title="Tooltip text">Hover over me</span>

An example config could be the following:

xml
<doc>
  <w xml:id="w_0" pos="DET"   lemma="the">The</w>
  <w xml:id="w_1" pos="ADJ"   lemma="quick">quick</w>
  <w xml:id="w_2" pos="ADJ"   lemma="brown">brown</w>
  <w xml:id="w_3" pos="NOUN"  lemma="fox">fox</w>
  <w xml:id="w_4" pos="VERB"  lemma="jump">jumps</w>
  <w xml:id="w_5" pos="ADP"   lemma="over">over</w>
  <w xml:id="w_6" pos="DET"   lemma="the">the</w>
  <w xml:id="w_7" pos="ADJ"   lemma="lazy">lazy</w>
  <w xml:id="w_8" pos="NOUN"  lemma="dog">dog</w>
</doc>
xsl
<xsl:stylesheet xmlns:xsl="http://www.w3.org/1999/XSL/Transform" version="1.0">
  <xsl:template match="w">
    <span class="word" data-toggle="tooltip" title="{@lemma}"><xsl:value-of select="."/></span>
  </xsl:template>

  <xsl:template match="hl">
    <span class="hl"><xsl:apply-templates/></span>
  </xsl:template>
</xsl:stylesheet>
html
<span class="word" data-toggle="tooltip" title="the">The</span>
<span class="hl"><span class="word" data-toggle="tooltip" title="quick">quick</span></span>
<span class="word" data-toggle="tooltip" title="brown">brown</span>
<span class="word" data-toggle="tooltip" title="fox">fox</span>
<span class="word" data-toggle="tooltip" title="jump">jumps</span>
<span class="word" data-toggle="tooltip" title="over">over</span>
<span class="word" data-toggle="tooltip" title="the">the</span>
<span class="word" data-toggle="tooltip" title="lazy">lazy</span>
<span class="word" data-toggle="tooltip" title="dog">dog</span>

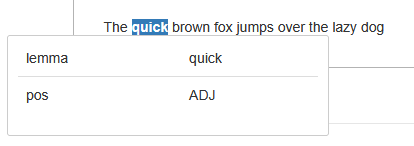

Tooltips with more info ​

advanced_tooltip

You can also display more than one attribute in the tooltip. To do this, use data-* attributes instead of title for your word elements.
As before, also apply the word class and data-toggle="tooltip" attribute.

xml
<doc>
  <w xml:id="w_0" pos="DET"   lemma="the">The</w>
  <w xml:id="w_1" pos="ADJ"   lemma="quick">quick</w>
  <w xml:id="w_2" pos="ADJ"   lemma="brown">brown</w>
  <w xml:id="w_3" pos="NOUN"  lemma="fox">fox</w>
  <w xml:id="w_4" pos="VERB"  lemma="jump">jumps</w>
  <w xml:id="w_5" pos="ADP"   lemma="over">over</w>
  <w xml:id="w_6" pos="DET"   lemma="the">the</w>
  <w xml:id="w_7" pos="ADJ"   lemma="lazy">lazy</w>
  <w xml:id="w_8" pos="NOUN"  lemma="dog">dog</w>
</doc>
xsl
<xsl:stylesheet xmlns:xsl="http://www.w3.org/1999/XSL/Transform" version="1.0">
	<xsl:template match="w">
		<span class="word" data-toggle="tooltip" data-lemma="{@lemma}" data-pos="{@pos}"><xsl:value-of select="."/></span>
	</xsl:template>

	<xsl:template match="hl">
		<span class="hl"><xsl:apply-templates/></span>
	</xsl:template>
</xsl:stylesheet>
html
<span class="word" data-toggle="tooltip" data-lemma="the" data-pos="DET">The</span>
<span class="hl active"><span class="word" data-toggle="tooltip" data-lemma="quick" data-pos="ADJ">quick</span></span>
<span class="word" data-toggle="tooltip" data-lemma="brown" data-pos="ADJ">brown</span>
<span class="word" data-toggle="tooltip" data-lemma="fox" data-pos="NOUN">fox</span>
<span class="word" data-toggle="tooltip" data-lemma="jump" data-pos="VERB">jumps</span>
<span class="word" data-toggle="tooltip" data-lemma="over" data-pos="ADP">over</span>
<span class="word" data-toggle="tooltip" data-lemma="the" data-pos="DET">the</span>
<span class="word" data-toggle="tooltip" data-lemma="lazy" data-pos="ADJ">lazy</span>
<span class="word" data-toggle="tooltip" data-lemma="dog" data-pos="NOUN">dog</span>

Expandable Tooltips ​

custom tooltip preview

If you want full control of the contents of the toolip, you can use the data-tooltip-preview and data-tooltip-content attributes. In this case, remove the data-toggle="tooltip" attribute.

This allows you to show a short preview on hover, and allow users to expand for more details. You can then put any HTML inside the tooltip.

WARNING

Make sure to escape any HTML inside the data-tooltip-preview and data-tooltip-content attributes! The escape code below will work for most cases, but you may need to adjust it for your own use case.

xml
<doc>
  <w xml:id="w_0" pos="DET"   lemma="the">The</w>
  <w xml:id="w_1" pos="ADJ"   lemma="quick">quick</w>
  <w xml:id="w_2" pos="ADJ"   lemma="brown">brown</w>
  <w xml:id="w_3" pos="NOUN"  lemma="fox">fox</w>
  <w xml:id="w_4" pos="VERB"  lemma="jump">jumps</w>
  <w xml:id="w_5" pos="ADP"   lemma="over">over</w>
  <w xml:id="w_6" pos="DET"   lemma="the">the</w>
  <w xml:id="w_7" pos="ADJ"   lemma="lazy">lazy</w>
  <w xml:id="w_8" pos="NOUN"  lemma="dog">dog</w>
</doc>
xml
<xsl:stylesheet xmlns:xsl="http://www.w3.org/1999/XSL/Transform" version="1.0">
	<xsl:template match="w">
		<xsl:variable name="tooltip"><xsl:call-template name="tooltip"/></xsl:variable>

		<span class="word">
			<xsl:attribute name="data-tooltip-preview" select="@lemma"/>
			<xsl:attribute name="data-tooltip-content" select="replace(replace(serialize($tooltip), '&amp;', '&amp;amp;'), '&quot;', '&amp;quot;')"/>
			<xsl:value-of select="."/>
		</span>
	</xsl:template>

	<xsl:template name="tooltip">
		<h2><xsl:value-of select="@lemma"/></h2>
		Some content here.
		<div class="well">
			Here is the id of the word: <strong><xsl:value-of select="@xml:id"/></strong>
		</div>
	</xsl:template>

	<xsl:template match="hl">
		<span class="hl"><xsl:apply-templates/></span>
	</xsl:template>
</xsl:stylesheet>
html
  <span class="word" data-tooltip-preview="the" data-tooltip-content="<h2>the</h2>
		Some content here.
		<div class=&amp;quot;well&amp;quot;>
			Here is the id of the word: <strong>w_0</strong></div>">The</span>
  <span class="hl active"><span class="word" data-tooltip-preview="quick" data-tooltip-content="<h2>quick</h2>
		Some content here.
		<div class=&amp;quot;well&amp;quot;>
			Here is the id of the word: <strong>w_1</strong></div>">quick</span></span>
  <span class="word" data-tooltip-preview="brown" data-tooltip-content="<h2>brown</h2>
		Some content here.
		<div class=&amp;quot;well&amp;quot;>
			Here is the id of the word: <strong>w_2</strong></div>">brown</span>
  <span class="word" data-tooltip-preview="fox" data-tooltip-content="<h2>fox</h2>
		Some content here.
		<div class=&amp;quot;well&amp;quot;>
			Here is the id of the word: <strong>w_3</strong></div>">fox</span>
  <span class="word" data-tooltip-preview="jump" data-tooltip-content="<h2>jump</h2>
		Some content here.
		<div class=&amp;quot;well&amp;quot;>
			Here is the id of the word: <strong>w_4</strong></div>">jumps</span>
  <span class="word" data-tooltip-preview="over" data-tooltip-content="<h2>over</h2>
		Some content here.
		<div class=&amp;quot;well&amp;quot;>
			Here is the id of the word: <strong>w_5</strong></div>">over</span>
  <span class="word" data-tooltip-preview="the" data-tooltip-content="<h2>the</h2>
		Some content here.
		<div class=&amp;quot;well&amp;quot;>
			Here is the id of the word: <strong>w_6</strong></div>">the</span>
  <span class="word" data-tooltip-preview="lazy" data-tooltip-content="<h2>lazy</h2>
		Some content here.
		<div class=&amp;quot;well&amp;quot;>
			Here is the id of the word: <strong>w_7</strong></div>">lazy</span>
  <span class="word" data-tooltip-preview="dog" data-tooltip-content="<h2>dog</h2>
		Some content here.
		<div class=&amp;quot;well&amp;quot;>
			Here is the id of the word: <strong>w_8</strong></div>">dog</span>
